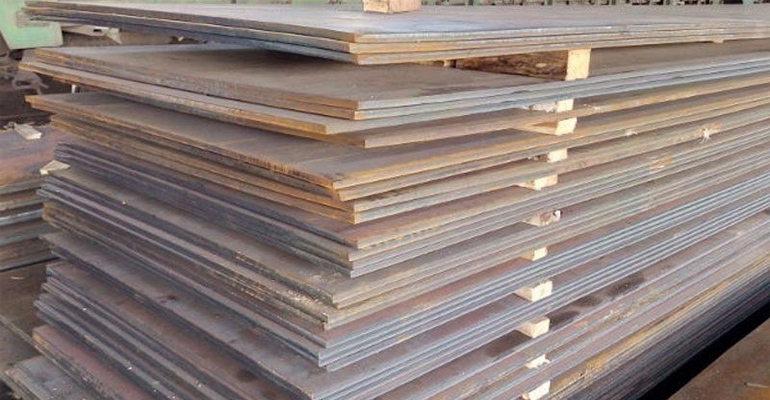

S890QL PLATES

Renam Alloys Inc. is a reputable manufacturer, supplier, exporter, and stockist of S890QL Plate in Mumbai, India. The Dillimax 890T is a high-strength, quenched, and tempered steel known for its fine grain structure. The yield strength of the plate is 890 MPa for thinner plates, with a gradual reduction in strength as the plates increase in thickness.


S890QL Structural Steel Plate is a high strength steel that is commonly used in various industrial applications. Dillimax S890QL plates are high-performance plates that offer excellent strength and durability. These plates are available in hot-rolled forms and are exported to global markets. The S890QL High Strength Steel Plates are widely used for their exceptional toughness and ability to withstand high stress in structural applications.

These plates are compliant with EN-10025 standards, ensuring their high quality and performance. ASTM A514 Grade S890QL is a commonly used specification for these plates, providing a guarantee of reliability and strength. Suppliers and stockists in Mumbai, India offer these plates to meet the demands of various industries requiring high-strength structural materials.


One of the primary advantages of using S890QL Steel Plates is the ability to achieve substantial weight reduction in structural designs, which in turn lowers fabrication costs. These plates exhibit a remarkable strength-to-weight ratio, making them ideal for the construction of bridges and sea-links that must support heavy loads. Their robust composition allows them to handle the pressure from heavy-duty trucks and vehicles travelling over such structures. They are also suitable for use in trailers, agricultural machinery, mining equipment, and earthmoving machines.

These EN 10025 S890QL Steel Plates are commonly recognized as High Strength Quenched and Tempered Steel Plates, High Yield Quenched and Tempered Steel Plates, High Strength Low Alloy (HSLA) Plates, and High Strength Structural Steel Plates. The plates find usage in a variety of demanding applications, including mobile and loader cranes, aerial lift platforms, load handling systems, bridges, and specialized containers. Available in a range of sizes, thicknesses, and custom specifications, these plates are provided at competitive pricing to meet specific customer requirements.


Specifications

Grade : S890QL EN10025-6:2004, DILLIMAX 890, WELDOX 900, S890QL, E890, JFE HITEN
Item : High Yield Strength Steel Plates
Thickness : 3 mm to 300 mm
Width : 2000 mm, 2500 mm, 3000 mm
Length : Up to 12000 mm long

S890QL structural Plates Chemical Composition

 C  Si  Mn  P  S  B  Cr  Cu  Mo
 0.20  0.80  1.70  0.020  0.010 0.005   1.50  0.50 0.70
 N  Nb*  Ni  Ti*  V*  Zr*
 0.015  0.06  2.0  0.05 0.12   0.15

S890QL High tensile Plates Mechanical Properties

Plate Thickness Yield Strength Tensile Strength Elongation Impact Strength
mm ReH (MPa)  Rm (MPa) A5 % minimum  J, Minimum
3 to 50 890  940 - 1100 11 30 @ -40º C
> 50 to 100 830 880 - 1100 11 30 @ -40º C

S890QL Equivalent grades

GRADE 1.8983
STANDARDS WERKSTOFF GOST IS
COUNTRY GERMANY RUSSIA INDIA

WE OFFERS FOLLOWING PROCESSING FOR QUEND 700 SHEETS & PLATES

Cutting, Forming Drilling / Machining, Grinding, Testing


Applications of Quend 700 Plates

Quend 700 Plates are widely used in a variety of industries due to their exceptional strength and durability. Common applications include machine building, pylons and other architectural structures, lifting and mobile equipment, construction of bridges, and wearing plates. They are also ideal for framework structures, crane booms, rail cars, stone or iron chutes, truck frames, and containers. Additionally, these plates are used in vehicles and transport equipment, various steel constructions, and anti-drill applications such as security doors. Their resilience also makes them perfect for shot blasting equipment and tumbling machines, where resistance to wear and impact is crucial.
