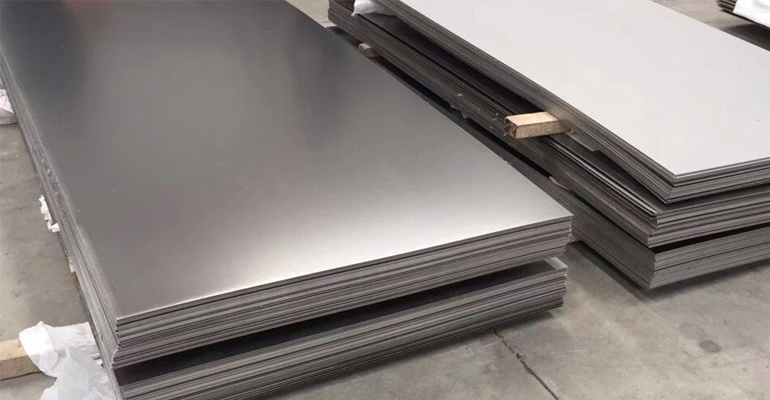

ASME SA 515 GR.70 PLATES

Renam Alloys Inc. supplies high-quality SA 515 GR.70 Plates for fabrication, which are ideally suited to high standards. These plates, conforming to SA515 Gr.70 Pressure Vessel Steel Plates, are excellent choices for repairs in applications involving temperatures lower than ambient. They offer exceptional notch toughness, making them highly reliable in challenging environments.

At Renam Alloys Inc., strict quality control measures are implemented at every step of the production process to ensure that only top-quality products are delivered to the market. With years of dedication and continuous improvement in quality, we have earned certifications that reflect our commitment to excellence. Leveraging our years of experience in manufacturing plates, we offer products that provide high quality at lower costs, while delivering the best service. As a result, our global sales are recognized across various industries. We welcome inquiries for complete projects or even a single plate.

Renam Alloys Inc. is a renowned supplier of SA515 Grade 70 BQ Plates and A515 Grade 70 Steel Plates in Mumbai, India. We specialize in ASTM A515 GR.70 Boiler Quality Steel Plates and serve as stockists of ASME SA515 GR.70 Pressure Vessel Plates. Our plates are widely used in industrial applications for manufacturing pressure vessels and boilers.

We provide SA515 GR.70 Industrial Boiler and Pressure Vessel Steel Plates for high-performance applications. Our A515 Lower Temperature Carbon Steel Grade 70 Plates are ideal for use in low-temperature environments. Additionally, we offer A515 Hot Rolled Pressure Vessel Grade 70 Steel Plates, ensuring high strength and excellent toughness in various industrial conditions. As a leading Pressure Vessel A515 GR.70 Steel Plate Supplier & Exporter, we serve clients worldwide.

Quality Assurance

The quality assurance process at Renam Alloys Inc. is guided by principles that support our exclusive working culture, incorporating respect, self-management, open communication, and creativity. These principles are: we strive to be the best in our manufacturing, we care about our customers, we do our best to honor our commitments, and we always act with integrity and fairness.

Corrosion Resistance

Our plates are highly resistant to corrosion. Unlike normal plates, they do not stain, rust, or corrode as easily. While they are not entirely decay-proof, their corrosion resistance is significantly improved due to the high chromium content. This limits surface corrosion, unlike regular plates which tend to rust when exposed to air and humidity. These plates are the ideal choice where low maintenance and corrosion resistance are required and are widely used in various applications.

Testing

Renam Alloys Inc. offers advanced metal testing facilities equipped with cutting-edge technology and knowledgeable staff. This is why we are the top choice for plate testing in various industries worldwide. Our testing services include:

Destructive and Non-destructive tests
Chemical test / Spectro analysis
Charpy test
Mechanical test
Hardness test
Tensile test
Hydrostatic test
Positive material test
Micro and Macro test
Intergranular corrosion test
Flaring test
Flattening test
Ultrasonic test
Radiographic test
Pitting corrosion test
Visual inspection

Documentation

We provide the necessary documentation for every order, ensuring that you have complete transparency in the process. The documents include:

Commercial invoice
Fumigation certificates
Quantity and marks & numbers
NABL test report
MTC report as per EN 10204 3.1 or 3.2
Packing list (Net and gross weight)
Guarantee letter
Specification guide
Certificate of origin by legalized manufacturers/embassy
Heat treatment charts
Attested certificate by suppliers
Mill test report
Quality assurance plan
Raw material test report

Packaging

The packaging of SA 515 GR.70 Boiler Plates ensures the products are protected during transportation. We use high-quality materials such as wooden boxes, crates, cartons, and cases, along with spiral wound paper tubes, cores on pallets, and individual wrapping with stretch film.

Specifications

Grade	ASME SA 515 GR.70 Boiler and Pressure Vessel Steel Plates
Width	1500mm-3000mm
Thickness	3 - 200 mm/ dimensions up to 4.000 mm
Length	3000mm-11000mm.
Production	Hot-Rolled (HR)
Heat Treatment	Rolled/Normalised/N+T/QT

CHEMICAL COMPOSITION OF A515 BQ GR.70 STEEL PLATES

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

MECHANICAL PROPERTIES OF BOILER QUALITY STEEL PLATES

Tensile strength (ksi)	Yield strength (ksi)	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
485-620 (70-90)	260 (38)	17	21

EQUIVALENT GRADE OF A515 GRADE 70 BOILER PLATES

British Standard	European Norm	ASTM/ASME	DIN
BS1501-224-490A/B	EN10028 P355GH	A/SA515 - Grade 70	-

WE OFFERS FOLLOWING PROCESSING FOR ASTM A515 HOT ROLLED BOILER GR.70 STEEL PLATE

Cutting, Forming Drilling / Machining, Grinding, Testing

APPLICATIONS OF ASTM A515 HOT ROLLED PRESSURE VESSEL GRADE 70 STEEL PLATES

The ASTM A515 Hot Rolled Pressure Vessel Grade 70 Steel Plates are widely used in various industries due to their exceptional strength and resilience. These plates are commonly employed in machine building, architectural structures like pylons, and in the manufacturing of lifting and mobile equipment. They are also ideal for applications in bridge construction, wearing plates, and framework structures. Other common uses include crane booms, rail cars, and stone or iron chutes. The plates are also used in the construction of truck frames, containers, and transport vehicles. Furthermore, they are essential in steel constructions and are used for anti-drill plates such as in security doors, shot blasting equipment, and tumbling machines.
