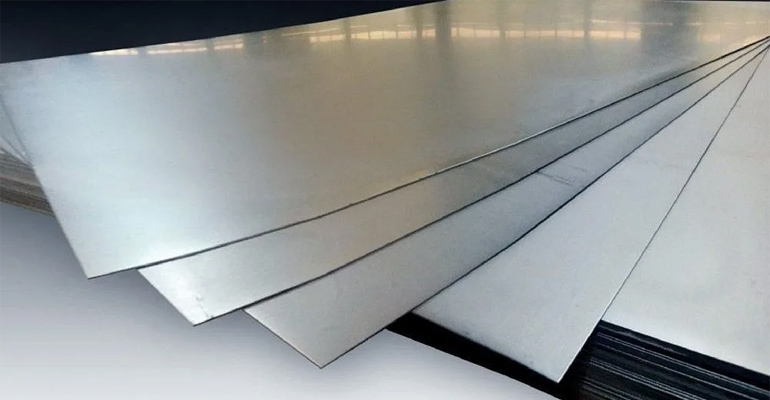

ASME SA 516 GR.60/70N DUAL CERTIFIED PLATES

Renam Alloys Inc.. stocks a wide selection of SA 516 GR.60/70N Dual Certified Plates, available in various widths, lengths, and thicknesses, making them perfect for pressure vessel and boiler fabrication. The company offers enhanced notch toughness, which is crucial for certain applications. The Grade 60 carbon plates come with full traceability and can be supplied with mill tests in accordance with EN10204 3.1 and EN10204 3.2. Established a few years ago, Renam Alloys Inc.. has earned a strong reputation as a leading supplier and manufacturer of high-quality products. The extensive product range allows clients to make bulk purchases, with all products fabricated from top-quality raw materials sourced from certified and reliable vendors. The production process is handled by skilled professionals. The products are highly praised for their robust construction, durability, reliability, and precise dimensions.

Renam Alloys Inc.. offers a wide range of SA516 Dual Certified Plates, including A516 Grade 60 and A516 Grade 70N, which are commonly used in pressure vessel and boiler applications. These plates are manufactured to meet international quality standards and are available in a variety of thicknesses, lengths, and widths. The company specializes in supplying these dual-certified plates in Mumbai, India, ensuring customers receive products with exceptional quality and traceability. The A516 Grade 60 and A516 Grade 70N plates are made from high-quality carbon steel, making them ideal for low-temperature applications. Renam Alloys Inc.. ensures the plates undergo rigorous testing and are supplied with mill test certificates in compliance with EN10204 3.1 and EN10204 3.2. The company has built a solid reputation for providing reliable, durable, and robust plates that meet the demanding requirements of various industries.

Testing of SA 516 GR.60/70N Dual Certified Plates

After the production and molding of the SA 516 GR.60/70N Dual Certified Plates into precise dimensions, the products undergo various tests to ensure quality. These tests include destructive tests, hydrostatic tests, nondestructive tests, mechanical tests, tensile tests, hardness tests, and micro & macro tests. In addition, secondary tests are performed, such as intergranular corrosion tests, chemical tests, Charpy tests, spectro analysis, flaring tests, ultrasonic tests, flattening tests, pitting corrosion tests, visual inspections, and radiographic tests to further ensure the quality and reliability of the product.


Documentation and Certification

Following the testing phase, comprehensive documentation and certificates are prepared for the SA 516 GR.60/70N Dual Certified Plates. The documentation includes a packing list with net and gross weight, NABL test reports, specification guides, commercial invoices, MTC reports in compliance with EN 10204 3.1 or EN 10204 3.2, guarantee letters, fumigation certificates, as well as information on quantity, marks, and numbers. Certificates associated with these plates include raw material test reports, certificates of origin from the legal embassy, mill test reports, QAP (Quality Assurance Plans), heat treatment charts, and attested certificates from the exporter or supplier.


Wrapping and Packaging

Once testing and documentation are completed, the plates are carefully wrapped and packaged to ensure their safe transportation. The wrapping materials used include wooden cases, crates, spiral wound tubes, pallet cores, and individual pole wraps with stretch films. This detailed packaging process ensures that the plates are delivered securely and in excellent condition. Additionally, products are subjected to a third-party inspection to confirm that they meet the specified requirements and adhere to industrial standards, guaranteeing the highest quality for the end customer.


Specifications

Grade ASME SA 516 GR.60/70N Boiler and Pressure Vessel Steel Plates
Width 1500mm-3000mm
Thickness 3mm-600mm
Length 3000mm-11000mm.
Production Hot-Rolled (HR)
Heat Treatment Rolled/Normalised/N+T/QT

CHEMICAL COMPOSITION OF A516 BQ GR.60/70N STEEL PLATES

Grades C Si Mn P S Al Cr Cu Ni Mo Nb Ti V
60 0.18 0.4 0.95/1.50 0.015 0.008 0.02 (Min) 0.3 0.3 0.3 0.08 0.01 0.03 0.02
70N 0.18 0.4 0.95/1.50 0.015 0.008 0.02 (Min) 0.3 0.3 0.3 0.08 0.01 0.03 0.02

MECHANICAL PROPERTIES OF BOILER QUALITY STEEL GR 60/70N PLATES

Grades Tensile strength (ksi) Yield strength (ksi) Elongation min, % 200 mm (8 in) Elongation min, % 50 mm (2 in)
60 485-620 (70-90) 260 (38) 17 21
70N 485-620 (70-90) 260 (38) 17 21

EQUIVALENT GRADE OF A516 GRADE 60/70N BOILER PLATES

Grades British Standard European Norm ASTM/ASME DIN
60 BS1501-161-430A EN10028 P265GH A/SA516 - Grade 60 DIN 17155 HII
70N BS1501-224-490A/B EN10028 P355GH A/SA516 - Grade 70 -

WE OFFERS FOLLOWING PROCESSING FOR ASTM A516 HOT ROLLED BOILER GR.60/70N STEEL PLATE

Cutting, Forming Drilling / Machining, Grinding, Testing


Applications of ASTM A516 Hot Rolled Pressure Vessel Grade 60/70N Steel Plates

The ASTM A516 Hot Rolled Pressure Vessel Grade 60/70N Steel Plates are widely used in various industries and applications due to their superior durability and versatility. These plates are ideal for machine building, pylons and other architectural structures, lifting and mobile equipment, bridge construction, wearing plates, framework structures, crane booms, rail cars, stone or iron chutes, truck frames, containers, and vehicles and transport equipment. Additionally, they are used in steel constructions and specialized applications like anti-drill plates for security doors, shot blasting equipment, and tumbling machines.
