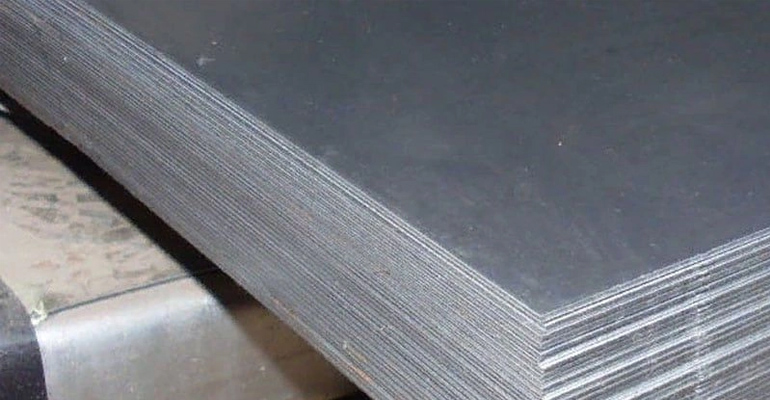

ASME SA 516 GR.60N NACE AND HIC PLATES

Renam Alloys Inc. is recognized as one of the prominent and reputed manufacturers, suppliers, and exporters of SA 516 GR.60N WITH NACE + HIC Plates. We serve both domestic and international markets, always prioritizing customer satisfaction. As a client-focused organization, we strive to meet the precise requirements and expectations of our valued clients. The plates we provide are produced using high-grade raw materials sourced from reliable and trusted vendors. Our team comprises skilled professionals with extensive experience, ensuring that each product aligns with global quality standards.


SA516 Steel NACE Plates, A516 Grade 60N HIC NACE Tested Plates, ASME SA516 GR.60N NACE Pressure Vessel Plates, ASTM A516 GR.60N NACE+HIC Boiler Quality Steel Plates Stockist, SA516 Grade 60N (HIC + NACE) Resistant Steel Plate Supplier in Mumbai, SA 516 GR.60N HIC Plates, SA516 Grade 60N BQ Plates Stockist in Mumbai, India.
A516 Grade 60N Carbon Steel NACE and HIC Tested Plates, NACE Pressure Vessel A516 GR.60N Steel Plate, SA516 GR.60N Industrial (NACE+HIC) Boiler and Pressure Vessel Steel Plates, SA 516 GR.60N NACE Plate, A516 Hot Rolled NACE Pressure Vessel Grade 60N Steel Plate Supplier & Exporter.

Description of SA 516 GR.60N NACE + HIC Tested Plates

SA 516 GR.60N NACE + HIC Tested Plates are advanced carbon steel plates enriched with elements such as manganese, phosphorus, and sulfur. These plates are developed in line with NACE and HIC compliance standards, making them suitable for boiler and pressure vessel applications. They provide excellent weldability, ductility, and strength under both low and moderate temperature conditions. These plates deliver consistent corrosion resistance and perform reliably in aggressive or challenging environments. They are especially suited for use in welded pressure vessels where notch toughness is a critical factor.


Test Certificates

To ensure full product quality assurance, we provide all essential test certifications to our customers. These include Mill Test Certificates (MTC) as per EN 10204 3.1 or 3.2, third-party inspection reports, raw material test certificates, 100% radiography test reports, and specialized HIC and NACE test certifications.


Documentation

Each product is accompanied by a comprehensive set of verified documents that detail all relevant information. These include a fumigation certificate, commercial invoice, heat treatment charts, and a guarantee letter. Additional documents consist of a Certificate of Origin issued by the manufacturer or embassy, mill test reports, supplier-attested certificates, and certified reports from NABL accredited laboratories.


Importance of Packaging

Once the manufacturing process is complete, we proceed with secure packaging to ensure the product’s integrity during transit. High-grade waterproof packaging materials are used followed by enclosure in wooden crates, boxes, or cartons, depending on customer requirements. This robust packaging safeguards the product from corrosion, physical damage, and other potential threats throughout transportation.


Marking Details

After packaging, each product is clearly marked with identification details for easy recognition. These markings include length, width, thickness, material specification, and the manufacturer’s trademark, ensuring complete traceability and transparency.


Specifications

Grade ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates
Width 1000mm-4500mm
Thickness 5mm-150mm
Length 3000mm-18000mm
Supply Condition As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested 52° C
Tempering Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing Hot-Rolled (HR)

CHEMICAL COMPOSITION OF A516 BQ GR.60N NACE AND HIC STEEL PLATES

C Si Mn P S Al Cr Cu Ni Mo Nb Ti V
0.20 0.4 0.95/1.50 0.025 0.025 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02

MECHANICAL PROPERTIES OF NACE RESISTANT STEEL PLATES

Tensile strength Yield strength Elongation min, % 200 mm (8 in) Elongation min, % 50 mm (2 in)
415-550 MPa 250 MPa 21 25

EQUIVALENT GRADE OF A516 GR.60N NACE BOILER PLATES

British Standard European Norm ASTM/ASME DIN
BS1501-161-430A EN10028 P265GH A/SA516 - Grade 60 DIN 17155 HII

WE OFFERS FOLLOWING PROCESSING FOR ASTM A516 HOT ROLLED BOILER GR.60N NACE RESISTANT STEEL PLATE

Cutting, Forming Drilling / Machining, Grinding, Testing


Applications of ASTM A516 NACE + HIC Hot Rolled Pressure Vessel Grade 60N Steel Plates

ASTM A516 Grade 60N NACE + HIC Tested Steel Plates are widely utilized across multiple industries for their durability and toughness. These plates are ideal for machine building, pylons, and various architectural structures. They are also used in lifting and mobile equipment, bridge construction, and as wearing plates. Their application extends to framework structures, crane booms, rail cars, stone or iron chutes, and truck frames. Additionally, they are suitable for containers, vehicles and transport equipment, steel constructions, and anti-drill components like security doors. These plates are also used in shot blasting machines and tumbling equipment, proving their versatility and reliability in harsh working environments.
