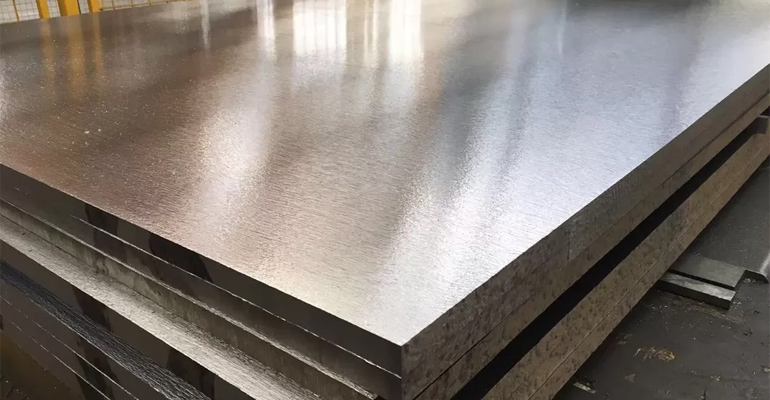

ASME SA 516 GR.70 PLATES

We, Renam Alloys Inc., are committed to providing the world with a wide variety of products in our sector. Our company is a manufacturer, producer, trader, exporter, dealer, and supplier of SA 516 GR.70 Plates. Our company has earned recognition as one of the most esteemed and reputable companies in the industry. The products we fabricate hold significant demand both internationally across various countries and domestically in every part of India. This strong demand is driven by the superior quality and durability of the products, which are carefully designed and manufactured by us.

SA516 Grade 70 Steel Plates Supplier in Mumbai, Stockist of ASTM A516 Gr.70 Boiler Quality Steel Plates, SA516 Grade 70 BQ Plates, A516 Grade 70 Steel Plate, ASME SA516 Gr.70 Pressure Vessel Plates Stockist in Mumbai, India.

A516 Hot Rolled Pressure Vessel Grade 70 Steel Plates, Pressure Vessel A516 Gr.70 Steel Plates, A516 Lower Temperature Carbon Steel Grade 70 Plates, Supplier and Exporter of SA516 Gr.70 Industrial Boiler and Pressure Vessel Steel Plates.

Characteristics and Manufacturing of SA 516 GR.70 Plates

The SA 516 GR.70 Boiler Plates offered by our company are produced using a carefully crafted combination of highly skilled engineers, professionals with extensive experience, top-quality raw materials, and fully automated, modern machinery. This combination ensures that the plates perform excellently in even the harshest environmental conditions. These plates are highly sought after for their superior performance in extreme weather conditions.

Packaging and Credentials of SA 516 GR.70 Plates

To ensure complete security, the packaging of SA 516 GR.70 Pressure Vessel Plates is done meticulously. The product is wrapped in specially designed gunny bags and poly bags or bubble wrap. Once wrapped, the plates are stored in wooden boxes and pallets. Every product is accompanied by mandatory documents, including test reports and a guarantee card, to ensure that customers face no inconvenience.

People Also Searched for A516 GR.70 Pressure Vessel Plates

A516 GR.70 Boiler Plates Suppliers in India, A516 GR.70 Industrial Steel Plates Specifications, A516 Hot Rolled Boiler Grade 70 Steel Plate Chemical Composition, ASME SA516 GR.70 Pressure Vessel Plates, SA516 Steel Plate, A516 GR.70 Hot Rolled Boiler Quality Plates, A516 Grade 70 Boiler Quality Plates Prices, ASTM A516 Grade 70 Steel Plates, A516 GR.70 Steel Plates for Boilers and Pressure Vessels Manufacturers, SA516 Hot Rolled Grade 70 Steel Plate Stockist in Mumbai, A516 GR.70 Boiler and Pressure Vessel Steel Plates Stockists in Mumbai, SA 516 Pressure Vessel GR.70 Steel Plate Stockists in India, SA516 Grade 70 Boiler and Pressure Vessel Steel Plates PDF, A516 Grade 70 HR Pressure Vessel Plates Manufacturers in Mumbai India, A516 Grade 70 Low Temperature Carbon Steel Boiler Quality Plates Equivalent Grade, ASTM A516 Grade 70 BQ Plates Properties, ASTM A516 Boiler Vessel Steel Grade 70 Plate Hardness, SA 516 GR.70 Plates, SA516 GR.70 Pressure Vessel Carbon Steel Plates Supplier in India, SA516 Grade 70 Pressure Vessel Steel Plates Price List, A516 Grade 70 Carbon Steel Plates in Mumbai.

Specifications

Grade	ASME SA 516 GR.70 Boiler and Pressure Vessel Steel Plates
Width	1500mm-3000mm
Thickness	3 - 200 mm/ dimensions up to 4.000 mm
Length	3000mm-11000mm.
Production	Hot-Rolled (HR)
Heat Treatment	Rolled/Normalised/N+T/QT

CHEMICAL COMPOSITION OF A516 BQ GR.70 STEEL PLATES

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

MECHANICAL PROPERTIES OF BOILER QUALITY STEEL PLATES

Tensile strength (ksi)	Tensile strength (MPa)	Yield strength (ksi)	Yield strength (MPa)	Elongation in 200mm (min)(%)	Elongation in 50mm (min) (%)
65-85	450-585	35	240	19	23

EQUIVALENT GRADE OF A516 GRADE 70 BOILER PLATES

British Standard	European Norm	ASTM/ASME	DIN
BS1501-224-490A/B	EN10028 P355GH	A/SA516 - Grade 70	-

WE OFFERS FOLLOWING PROCESSING FOR ASTM A516 HOT ROLLED BOILER GR.70 STEEL PLATE

Cutting, Forming Drilling / Machining, Grinding, Testing

Applications of ASTM A516 Hot Rolled Pressure Vessel Grade 70 Steel Plates

The ASTM A516 Hot Rolled Pressure Vessel Grade 70 Steel Plates are widely used in various industries and applications. They are ideal for machine building, architectural structures like pylons, lifting and mobile equipment, as well as bridge construction. These plates are also used for making wearing plates, framework structures, crane booms, rail cars, and stone or iron chutes. Other applications include truck frames, containers, transport vehicles, steel constructions, and anti-drill plates for security doors. Additionally, they are used in shot blasting equipment and tumbling machines.
