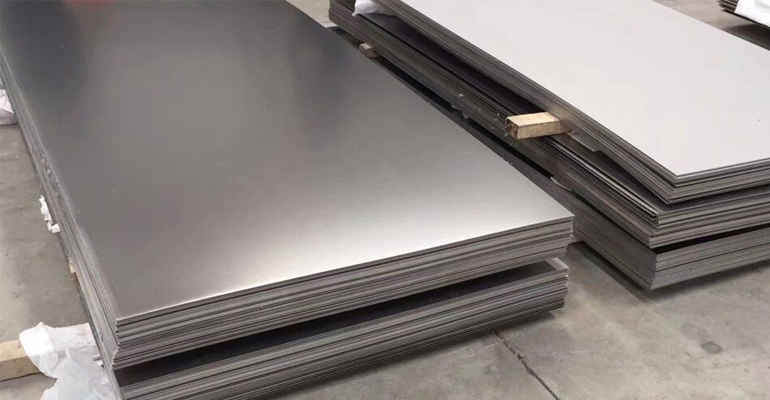

ASME SA 516 GR.60/70N NACE PLATES

ASTM A516 Grade 60/70 refers to a premium-grade boiler and pressure vessel steel known for its excellent performance in low and moderate temperature industrial applications. The raw material used in manufacturing NACE-certified plates is specifically chosen for its use in industrial boilers and components commonly employed in the oil and gas sector.

These plates exhibit superior weldability and deliver exceptional toughness even at elevated temperatures. Often referred to as PVQ516 steel plates, this carbon steel alloy is designed to meet the demands of pressure vessels in moderate pressure environments.

The industry offers these plates in a range of thicknesses and supplies them in the as-rolled condition to suit varying application needs. The chemical composition of these plates includes essential elements like carbon, silicon, manganese, phosphorus, aluminum, and chromium in controlled proportions to ensure high performance.

At Renam Alloys Inc., we maintain an exclusive inventory of SA 516 Gr.60/70N NACE Plates, offering a wide range of grades, thicknesses, and qualities at highly affordable prices. We also cater to the specific needs of our customers by delivering plates in customized sizes, lengths, and shapes.

SA516 Steel NACE Plates, including A516 Grade 60/70N NACE Tested Plates, are widely used for pressure vessel and boiler applications. We are a leading supplier and stockist in Mumbai of ASME SA516 GR.60/70N NACE Pressure Vessel Plates, known for their reliability in harsh environments. Our SA516 Grade 60/70N NACE Resistant Steel Plates are available in various thicknesses and specifications for both industrial and commercial use.

As a reputed stockist of ASTM A516 GR.60/70N NACE Boiler Quality Steel Plates in India, we ensure every plate meets the highest quality standards. These plates offer outstanding resistance against hydrogen-induced cracking and sulfide stress corrosion, making them suitable for oil and gas industries. Our SA516 Grade 60/70N BQ NACE Plates are in high demand due to their excellent mechanical properties and weldability.

We supply SA516 GR.60/70N Industrial NACE Boiler Plates that are engineered to withstand challenging environments. These A516 Grade 60/70N Carbon Steel NACE Tested Plates are ideal for fabricating vessels that operate under pressure. Whether you need A516 GR.60/70N NACE Boiler Steel Plate for construction or A516 Hot Rolled NACE Pressure Vessel Grade 60/70N Steel Plates for export, we provide tailored solutions to meet your exact requirements.

Quality Tests

To ensure the superior quality and performance of SA 516 GR.60/70N WITH NACE Plates, the industry performs a variety of stringent quality tests. These tests are crucial to verify the product's durability and reliability before it reaches the customer. Some of the key tests conducted include the micro and macro test, positive material identification (PMI) test, intergranular corrosion (IGC) test, pitting resistance test, flaring test, flattening test, eddy current test, and spectral analysis.

Packaging of the Plates

Great emphasis is placed on the secure packaging of SA 516 GR.60/70N WITH NACE Plates to maintain their quality during transit. To prevent any form of damage or contamination, the plates are initially wrapped in poly bags and then placed in wooden cases, crates, or pallets that are free from fumigation and other harmful substances. In addition, the company’s sales representatives coordinate with clients to provide all necessary shipping documents along with the product for a smooth and transparent delivery process.

Specifications

Grade	ASME SA 516 GR.60/70N Boiler Plates
Width	1000mm-4500mm
Thickness	5mm-150mm
Length	3000mm-18000mm
Supply Condition	As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested	52° C
Tempering	Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications	Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing	Hot-Rolled (HR)

CHEMICAL COMPOSITION OF A516 GR.60/70N NACE BQ STEEL PLATES

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.20	0.4	0.95/1.50	0.025	0.025	0.02	0.3	0.3	0.3	0.08	0.01	0.03	0.02
0.18	0.4	0.95/1.50	0.015	0.008	0.02 (Min)	0.3	0.3	0.3	0.08	0.01	0.03	0.02

MECHANICAL PROPERTIES OF SA516 60/70N NACE RESISTANT STEEL PLATES

Tensile strength	Yield strength	Elongation min, % 200 mm (8 in)	Elongation min, % 50 mm (2 in)
415-550 MPa	250 MPa	21	25
485-620 (70-90)	260 (38)	17	21

EQUIVALENT GRADE OF A516 GR.60/70N NACE BOILER PLATES

British Standard	European Norm	ASTM/ASME	DIN
BS1501-161-430A	EN10028 P265GH	A/SA516 - Grade 60	DIN 17155 HII
BS1501-224-490A/B	EN10028 P355GH	A/SA516 - Grade 70	-

WE OFFERS FOLLOWING PROCESSING FOR ASTM A516 NACE HOT ROLLED BOILER GR.60/70N PLATE

Cutting, Forming Drilling / Machining, Grinding, Testing

Applications of ASTM A516 NACE Pressure Vessel Grade 60N/70N Steel Plates

ASTM A516 NACE Pressure Vessel Grade 60N/70N Steel Plates are widely used across a variety of industrial and structural applications. These include machine building, pylons and other architectural structures, lifting and mobile equipment, bridge construction, and wearing plates. They are also suitable for framework structures, crane booms, rail cars, stone or iron chutes, truck frames, and containers. Additionally, these plates are commonly used in vehicles and transport equipment, steel constructions, anti-drill applications such as security doors, and in abrasive environments like shot blasting equipment and tumbling machines.
