Stainless Steel

  • Home
  • Sheet & Plates

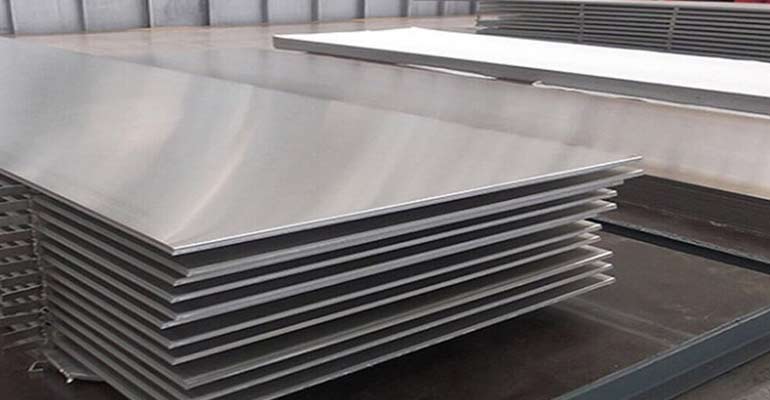

Stainless Steel

All finishes of stainless steel plates in the following grades are available from Renam Alloys: 201, 304, 304L, 316L, Duplex, 446, 410, and 430. We are one of the largest suppliers of stainless steel plates, and we have a lot of 304, 304l, 316, 316l, 310s, 309s, 321, 904l, as well as 200 and 400 series. We provide stainless steel plates in both narrow and wide widths that can be trimmed to size. We have stainless steel plates in stock that range in thickness from 6 to 100 mm and in width from 1250 to 2500 mm.

SStainless Steel sheets & Plates Specification


Description Stainless Steel Plates, Hot Rolled Stainless Steel Plates
Standard ASTM, ASME, BS, DIN, EN
Material 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L,
302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc
Technique Hot Rolled And Cold Rolled.
Surface 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching
Thickness 0.25-200mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm
Package Standard Export Seaworthy Package, or as required.
Container 20ft GP: 5898mm(length)x2352mm(width)x2393mm(high)
Size 40ft GP: 12032mm(length)x2352mm(width)x2393mm(High)
40ft HC: 12032mm(length)x2352mm(width)x2698mm(high)
Price term Ex-Work, FOB, CNF, CFR, CIF
 MTC Mill Test Certificate, Available as per EN 10204 3.1


300 Series & 200 Series 400 Series Duplex Stainless Steel & Others
301 Stainless Steel Plates 409 Stainless Steel Plates 2205 Stainless Steel Plates
304/304L Stainless Steel Plates 409L Stainless Steel Plates 2507 Stainless Steel Plates
309/309S Stainless Steel Plates 410/410S Stainless Steel Plates UNS S31803 Stainless Steel Plates
310/310S Stainless Steel Plates 420 Stainless Steel Plates UNS S32205 Stainless Steel Plates
316/316L Stainless Steel Plates 430 Stainless Steel Plates UNS S32750 Stainless Steel Plates
316Ti Stainless Steel Plates 431 Stainless Steel Plates UNS S32760 Stainless Steel Plates
317L Stainless Steel Plates 439 Stainless Steel Plates 904L Stainless Steel Plates
321/321H Stainless Steel Plates 441 Stainless Steel Plates 17 4-PH Stainless Steel Plates
347/347H Stainless Steel Plates 444 Stainless Steel Plates 254 SMO Stainless Steel Plates
201 (1% Ni) Stainless Steel Plates
202 (4-6% Ni) Stainless Steel Plates

Chemical Composition


Type Grade ASTM A240 Chemical Composition
ASTM(A240M) Others(JIS) C Si Mn P S Ni Cr Mo Others
Austenitic Steels 304 SUS304 ≤0.07 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 17.5/19.5 ― N≤0.10
304H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0 ―
304L SUS304L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 17.5/19.5 ― N≤0.10
304N SUS304N1 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0 ― N:0.10/0.16
304LN SUS304LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 18.0/20.0 ― N:0.10/0.16
309S SUS309S ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 12.0/15.0 22.0/24.0 ―
310S SUS310S ≤0.08 ≤1.50 ≤2.00 ≤0.045 ≤0.030 19.0/22.0 24.0/26.0 ―
316 SUS316 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316L SUS316L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00
316LN SUS316LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N:0.10/0.16
317L SUS317L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N≤0.10
317LN SUS317LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N:0.10/0.22
321 SUS321 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/12.0 17.0/19.0 ― N≤0.10Ti:5ʷʢC+Nʣ/0.70
347 SUS347 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/13.0 17.0/19.0 ― Nb:10ʷC/1.00
904L SUS890L ≤0.020 ≤1.00 ≤2.00 ≤0.045 ≤0.035 23.0/28.0 19.0/23.0 4.00/5.00 N≤0.10Cu:1.0/2.0
S31254 ≤0.020 ≤0.80 ≤1.00 ≤0.030 ≤0.010 17.5/18.5 19.5/20.5 6.0/6.5 N:0.18/0.25Cu:0.50/1.00
SUS317J2 ≤0.06 ≤1.50 ≤2.00 ≤0.045 ≤0.030 12.00/16.00 23.00/26.00 0.50/1.20 N:0.25/0.40

Mechanical Properties


Type Mechanical Properties for Stainless Steel Plates
ASTM(A240M) Others(JIS) Tensile Properties Hardness
Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%) HBW HRBW
AusteniticSteels 304 SUS304 ≥205 ≥515 ≥40 ≤201 ≤92
304H ≥205 ≥515 ≥40 ≤201 ≤92
304L SUS304L ≥170 ≥485 ≥40 ≤201 ≤92
304N SUS304N1 ≥240 ≥550 ≥30 ≤217 ≤95
304LN SUS304LN ≥205 ≥515 ≥40 ≤217 ≤95
309S SUS309S ≥205 ≥515 ≥40 ≤217 ≤95
310S SUS310S ≥205 ≥515 ≥40 ≤217 ≤95
316 SUS316 ≥205 ≥515 ≥40 ≤217 ≤95
316L SUS316L ≥170 ≥485 ≥40 ≤217 ≤95
316H ≥205 ≥515 ≥40 ≤217 ≤95
316LN SUS316LN ≥205 ≥515 ≥40 ≤217 ≤95
317L SUS317L ≥205 ≥515 ≥40 ≤217 ≤95
317LN SUS317LN ≥240 ≥550 ≥40 ≤217 ≤95
321 SUS321 ≥205 ≥515 ≥40 ≤217 ≤95
347 SUS347 ≥205 ≥515 ≥40 ≤201 ≤92
N08904/904L SUS890L ≥220 ≥490 ≥35 ≤196 ≤90
S31254 ≥310 ≥655 ≥35 ≤223 ≤96
SUS317J2 ≥345 ≥690 ≥40 ≤250 ≤100
